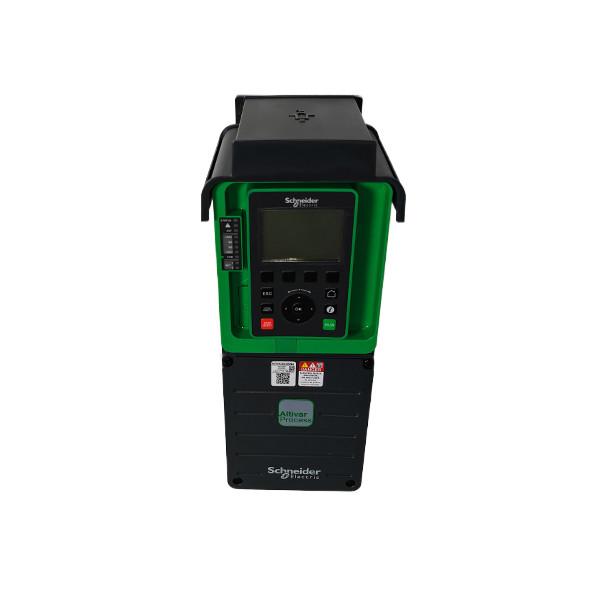

Schneider Electric ATV930U15M3 Variable Frequency Drive (VFD): A Detailed Technical Review
The Schneider Electric ATV930U15M3 is a compact yet powerful variable frequency drive (VFD) tailored for light-to-medium industrial applications. As part of the ATV930 series, this 1.5kW unit combines energy efficiency, precision control, and robust design, making it ideal for motors requiring flexible speed regulation. Operating on a 200–240V power supply, it features integrated braking, IP21 protection, and advanced connectivity. Below is a comprehensive technical table followed by an in-depth analysis of its features, applications, and unique advantages.
Technical Specification Table
| Parameter | Details |
| Model | ATV930U15M3 |
| Power Rating | 1.5 kW (2 HP) |
| Input Voltage | 200–240 V ±10%, 3-phase |
| Output Current | 7.2 A (200V) / 5.8 A (240V) at 4 kHz switching frequency |
| Braking System | Built-in dynamic braking (up to 120% of nominal torque) |
| Protection Class | IP21 (finger-safe, dust-resistant, drip-proof) |
| Control Modes | V/F, sensorless vector control, and enhanced flux vector control |
| Communication Protocols | EtherNet/IP, Modbus RTU, CANopen, and optional Profinet/DeviceNet |
| Digital Inputs/Outputs | 6 programmable digital inputs (24V DC) / 2 relay outputs (NO/NC) |
| Analog Inputs/Outputs | 2 configurable analog inputs (0–10V/4–20mA) / 1 analog output (0–10V) |
| Switching Frequency | Adjustable (1–12 kHz) |
| Ambient Temperature | -10°C to 40°C (operation), -20°C to 60°C (storage) |
| Cooling Method | Natural convection (18W at 200V) / forced ventilation (55W at 200V) |
| Dimensions (W×H×D) | 110 mm × 250 mm × 160 mm |
| Weight | 2.8 kg |
| Certifications | UL, CE, TÜV, IEC 61800-3, IEC 60721-3-3 (class 3C2), and RoHS compliant |
Key Features and Functionalities
1. Compact Design and Power Density
The ATV930U15M3’s 1.5kW rating and ultra-compact dimensions (110mm × 250mm × 160mm) make it perfect for space-constrained installations. Despite its small footprint, it delivers reliable performance for motors up to 2 HP, catering to applications like small pumps, fans, and conveyors.
2. Integrated Braking System
Unlike external braking solutions, the built-in dynamic braking circuit handles up to 120% of the drive’s nominal torque. This simplifies wiring and reduces costs for applications requiring frequent stopping/deceleration, such as material handling systems.
3. Advanced Control Algorithms
- V/F Control with Slip Compensation: Maintains speed accuracy under varying loads.
- Sensorless Vector Control (SVC): Delivers 150% starting torque at 0.5 Hz for pumps and mixers.
- Enhanced Flux Vector Control (EFVC): Requires encoder feedback for high-precision tasks like winding machines.
4. Communication Flexibility
The drive supports EtherNet/IP for real-time industrial Ethernet networks and Modbus RTU for serial communication. Optional adapters enable Profinet/DeviceNet integration, ensuring compatibility with legacy and modern systems.
5. Energy Efficiency and Compliance
With a switching frequency up to 12 kHz, the ATV930U15M3 minimizes motor noise and harmonic distortion. It meets IEC 61800-3 Category C2 for electromagnetic compatibility (EMC) and adheres to RoHS directives, aligning with global sustainability goals.
Applications
The ATV930U15M3 excels in diverse sectors:
- Food and Beverage: Small-scale mixers, fillers, and packaging lines.
- Textiles: Spindle drives, looms, and yarn winders.
- HVAC: AHU fans, chiller pumps, and ventilation systems.
- Water Treatment: Dosing pumps and aerators.
- Material Handling: Miniature conveyors, sortation systems, and palletizers.
Installation and Maintenance
Installation
- Mounting: Vertical or horizontal orientation with 50mm clearance for airflow.
- Wiring: Spring-type terminals for power/motor connections and plug-in connectors for control signals.
- Commissioning: Schneider’s SoMove software simplifies parameter setup and diagnostics via USB or Bluetooth.
Maintenance
- Cooling System: Clean filters quarterly to prevent overheating.
- Firmware Updates: Use the built-in SD card slot for non-disruptive updates.
- Predictive Maintenance: Monitor key parameters (e.g., IGBT temperature, capacitor health) via EtherNet/IP.
Unique Advantages Over Competitors
- Space Efficiency: 40% smaller than comparable drives, fitting into tight control panels.
- Low Harmonic Distortion: Complies with IEEE 519 without additional filters.
- Eco-Mode: Reduces energy consumption by up to 25% in partial-load scenarios.
- Safety Integration: STO (Safe Torque Off) function compliant with IEC 61800-5-2.
Case Study: Textile Spindle Application
A textile manufacturer replaced a fixed-speed drive with the ATV930U15M3 to control spindle motors. The results included:
- 30% energy savings through adaptive motor control.
- Reduced yarn breakage via precision speed regulation (±0.1% accuracy).
- 50% faster maintenance using SoMove’s diagnostic logs.
Conclusion
The Schneider Electric ATV930U15M3 is a versatile, energy-efficient VFD designed for compact spaces and light industrial loads. Its integrated braking, advanced control modes, and IoT-ready communication make it a cost-effective solution for applications demanding precision and reliability. By prioritizing ease of use and sustainability, it outperforms competitors in sectors like textiles, HVAC, and food processing, offering a compelling blend of performance and value.
